Hygienic Design of Stainless Steel Tanks

When a processing plant faces a contaminated batch, the financial impact is immediate. Furthermore, audits conducted by agencies such as COFEPRIS or the FDA leave no room for technical error. Therefore, the hygienic design of stainless steel tanks is no longer just another catalog option. Today, it represents the only real guarantee for protecting the integrity of your commercial formulations.

Many general metal fabrication shops offer polished vessels that appear flawless at first glance. However, true sanitary engineering is not evaluated by appearance, but by precision measured in microns. Below, we explain how hidden geometric flaws compromise the sanitary integrity of your production lines.

The Hidden Cost of the "Corner Effect" and Dead Legs

The primary enemy of microbiological purity in fluid processing is not the lack of sanitizing agents. On the contrary, the real danger lies in poor vessel design. When a tank contains sharp corners or improperly engineered joints, it creates what is known as the "corner effect." As a result, the CIP cleaning flow loses effectiveness in these areas, allowing product residues to accumulate.

As a direct consequence of this stagnation, opportunistic microorganisms find the ideal environment to colonize the system. These bacteria adhere to imperfections in the metal surface and develop complex biofilms. Likewise, these colonies become highly resistant to conventional cleaning chemicals.

The hidden danger of biofilms in sanitary systems

Las biopelículas o biofilms son estructuras microscópicas que actúan como un escudo para los patógenos. Una vez instaladas en una esquina muerta, desprenden bacterias de forma intermitente hacia los lotes de producción. Por lo tanto, tu producto puede sufrir contaminaciones cruzadas inexplicables, arruinando la reputación de la marca y elevando los costos por mermas o retiros del mercado.

Compliance with ASME BPE and 3-A Sanitary Standards Compared to Generic Fabrication Shops

To eliminate these risks, the global pharmaceutical and cosmetics industries follow extremely rigorous standards. In this regard, the ASME BPE (Bioprocess Equipment) standard establishes precise manufacturing requirements. Purchasing generic metal plates is not enough; controlled internal surface roughness and a geometry free of dead legs are mandatory.

At Falco Latino, we address this challenge through rigorous metallurgical control. Every component undergoes advanced mechanical polishing and chemical electropolishing. As a result, we transform the stainless steel surface into an ultra-smooth barrier where contaminants cannot mechanically adhere.

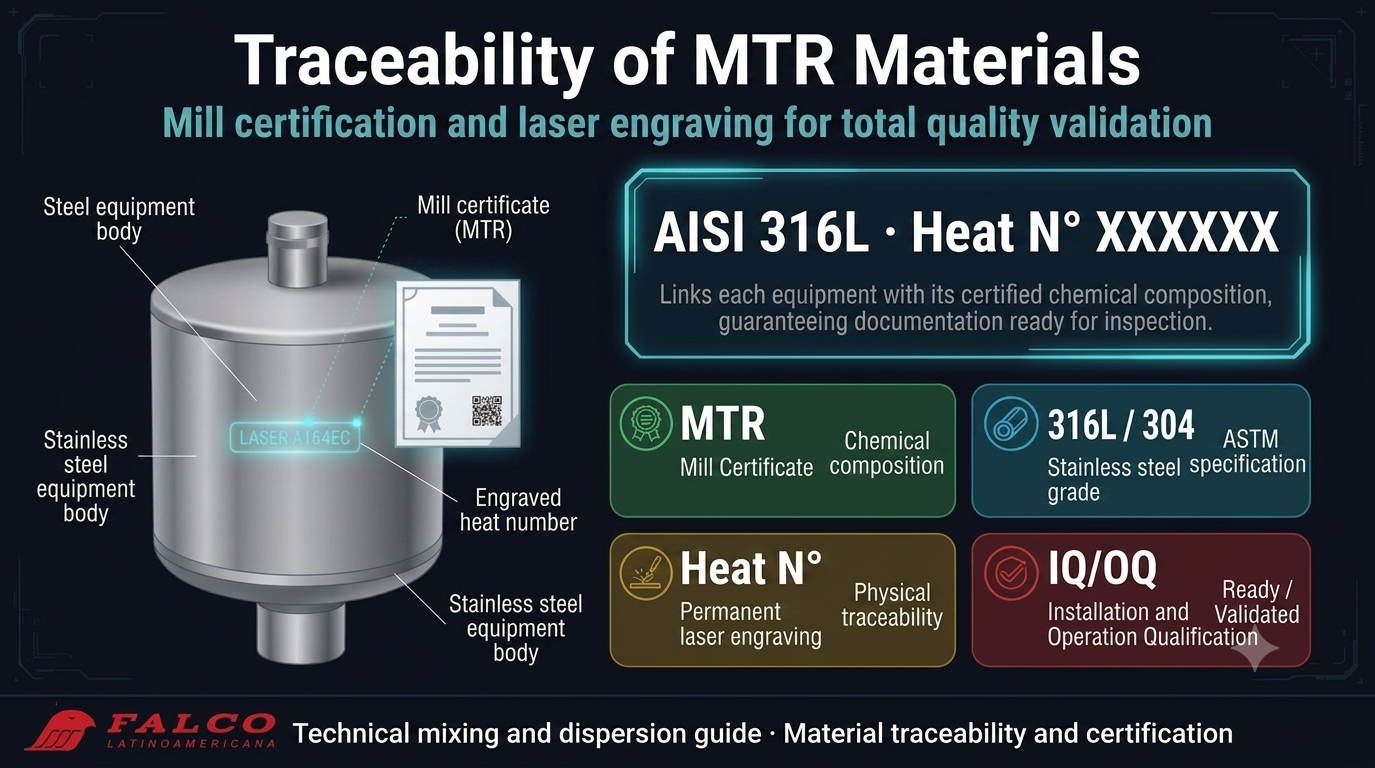

MTR Material Traceability

Every solution that leaves our production lines includes its corresponding Mill Test Report (MTR). This document certifies that the 316L or 304 stainless steel complies with the required chemical composition specifications. Additionally, we laser-engrave the heat number directly onto the equipment body. This ensures that your documentation is fully prepared to successfully pass any IQ/OQ validation inspection.

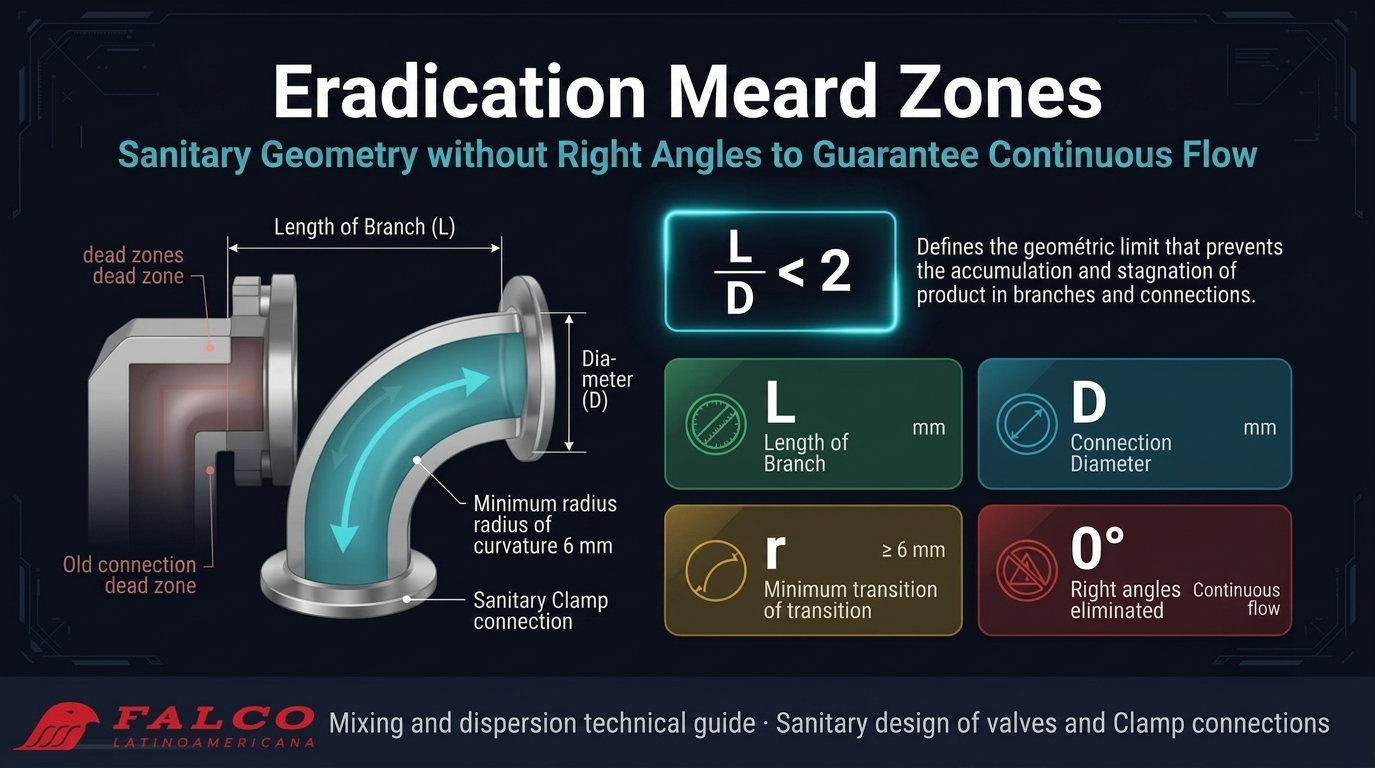

Elimination of Dead Legs

Advanced engineering requires that the ratio between the length of a branch connection and its diameter remain below two. For this reason, we redesign the geometry of valve necks and sanitary clamp connections. We completely eliminate sharp corners, replacing them with smooth curved transitions featuring minimum radii of 6 mm to guarantee continuous flow.

Strategic Solution: Engineering Tailored to Your Needs

Optimizing your production plant requires integrating fixed assets that accelerate cleaning cycles while reducing water consumption. Consequently, the proper hygienic design of stainless steel tanks is an investment that pays for itself through reduced maintenance downtime.

Our engineering solutions division designs systems that are fully compatible with automated Clean-in-Place (CIP) processes. If you are planning an expansion, you can review our stainless steel tank catalog to evaluate conical-bottom, torispherical, or sloped-bottom configurations that best fit your available space.

Likewise, if your process requires thermal control or specialized agitation for dense emulsions, you can explore our dedicated section on industrial kettles and process tanks. This ensures that both heat transfer and fluid rheology comply with ASME BPE and EHEDG hygienic standards.

Partners in the Evolution of Your Processing Plant

The safety of your operations should never be left to chance or entrusted to uncertified welders. At Falco Latino, we understand that you are the expert in your formulation, and our role is to provide the high-engineering equipment that protects your production. The proper design of your equipment is the foundation that supports the quality of every batch you bring to market.

You do not have to face the complexity of sanitary compliance regulations without qualified technical support. We optimize the engineering, manufacturing, and delivery of your vessels directly from our engineering facility, fully adapting to your Process and Instrumentation Diagrams (P&ID).

Contact us today to schedule a personalized consultation with our specialists. Tell us about your production capacity, fluid characteristics, and regulatory requirements so we can design together the exact industrial solution that will enhance your company's performance, safety, and productivity.
