Thermal Efficiency in Industrial Tanks: Dimple Jacket vs. Half-Pipe vs. Conventional Jacket
Content
In the design of reactors and process tanks, selecting the heating (or cooling) jacket is the decision that has the greatest impact on operating costs and final product quality. Poor heat transfer not only wastes energy but can also degrade heat-sensitive products or significantly increase process cycle times.
Below, we analyze the three primary technologies used in the fabrication of stainless steel equipment and explain how to select the most appropriate option for your process.
Technical Checklist for CIP Process Validation (IQ/OQ)
Before commissioning, every CIP system must be validated under IQ (Installation Qualification) and OQ (Operational Qualification) protocols. To ensure regulatory compliance (FDA/EHEDG), its design must document:
Flow velocity: Guarantee a turbulent regime (Reynolds Number > 4,000) at all points of the tank.
Spray coverage: Tracer tests (Riboflavin test) to verify that 100% of the internal surface receives direct contact with the cleaning fluid.
Drainability: Confirm that there are no fluid retentions after the rinse cycle.
1. Conventional Jacket (Full Jacket)
This is the simplest solution, consisting of a second wall surrounding the tank to create an annular space through which the thermal fluid (steam, water, or oil) circulates.
- Operation: The thermal fluid fills the entire space and heats the inner wall of the tank.
- Advantages: It provides very uniform heat distribution and is ideal for low-pressure processes.
- Limitations: Due to its large internal volume, the thermal fluid tends to move slowly (laminar flow), reducing heat transfer efficiency. In addition, thicker walls are required to withstand pressure, increasing the weight and cost of the equipment.
2. Dimple Jacket
A Dimple Jacket consists of a thin stainless steel sheet spot-welded to the tank shell, creating a series of dimples or protrusions.
- The Secret to Its Efficiency: The dimples generate high turbulence within the thermal fluid. According to the principles of thermodynamics, the greater the turbulence, the higher the overall heat transfer coefficient (U).
- Ideal for: Steam or hot water heating. It can withstand considerable operating pressures without increasing the thickness of the primary tank wall.
- SEO Factor: It is the most cost-effective solution for the food and beverage industry due to its lightweight design and high thermal efficiency.
3. Half-Pipe Jacket
A Half-Pipe Jacket consists of pipes cut in half and welded helically around the outside of the tank.
- Extreme Strength: It is the best option for processes operating at high pressures (P > 150 psi) or those requiring controlled thermal shock.
- Flow Control: Because it forms a continuous channel, the thermal fluid travels at very high velocities, allowing precise temperature control in complex chemical processes.
- Recommended Use: Thermal fluids such as hot oil or applications where product viscosity requires highly localized heating.
Choosing the right elastomer and stainless steel grade is critical.
CIP cycles utilize aggressive chemicals (2-3% caustic soda, nitric acid, peroxides) at elevated temperatures (60-85°C).
Materials: We utilize 316L stainless steel with low sulfur content to enhance weldability and resistance to intergranular corrosion.
Seals: Technical guidelines recommend EPDM or virgin PTFE gaskets, as they deliver superior chemical resistance against sanitizing agents, preventing contamination from degraded rubber particles.

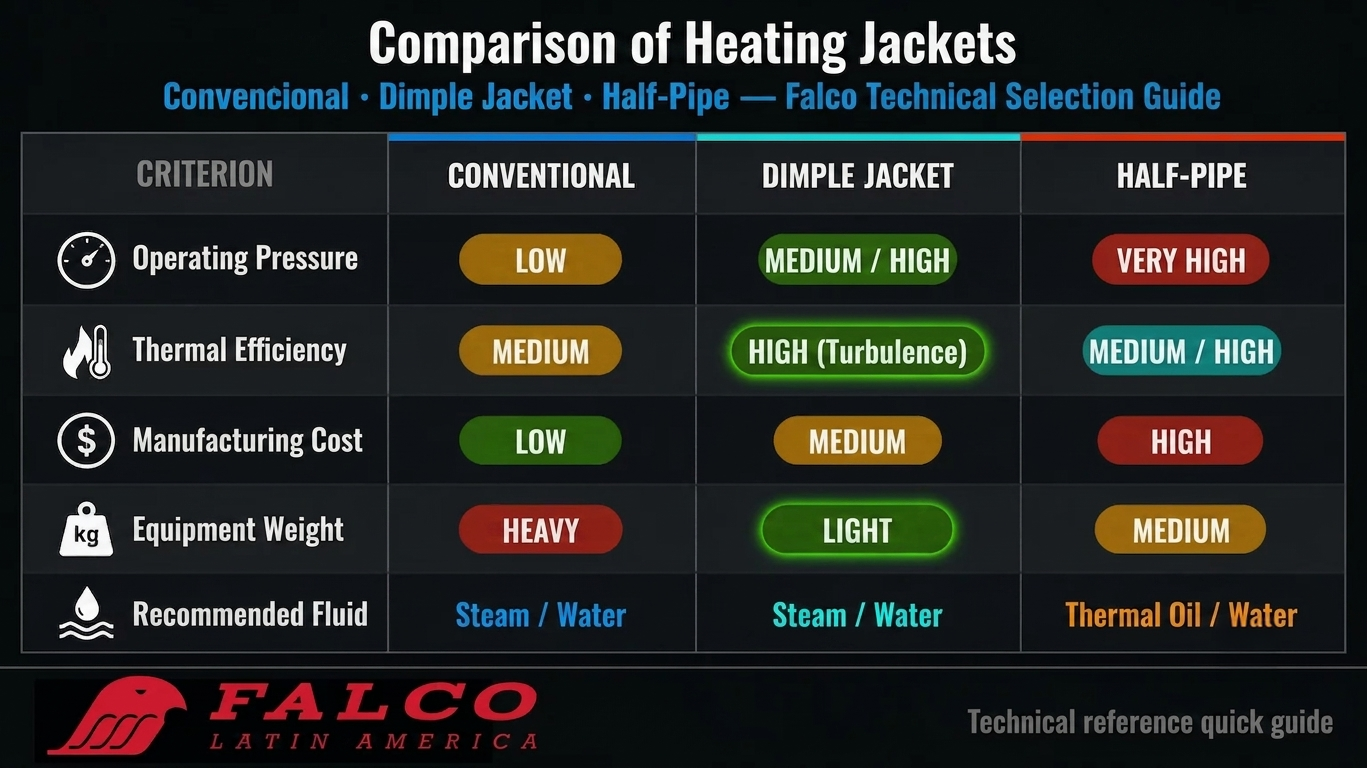

Technical Comparison: Which One Should You Choose?
To determine the optimal system, the variables of pressure, viscosity, and thermal fluid type must be evaluated together.
Selection According to Product Viscosity
- Low Viscosity (Water, Juices, Alcohol): A Dimple Jacket is sufficient and highly efficient because the product moves easily inside the vessel, facilitating heat transfer.
- High Viscosity (Molasses, Creams, Polymers): A Half-Pipe Jacket combined with an anchor agitator is recommended. The high velocity of the thermal fluid inside the jacket compensates for the slower heat absorption of the product.
Engineering Focused on Savings
At Falco Latino, we understand that every degree matters. We do not manufacture generic tanks; we design heat transfer systems specifically engineered to meet your plant's pressure and temperature requirements. Choosing the right jacket today means reducing steam and electricity consumption for the next 20 years.
Do you need a heat transfer calculation for your next reactor?
Our engineers can help you select the configuration that maximizes your ROI.
